Product Details
＋

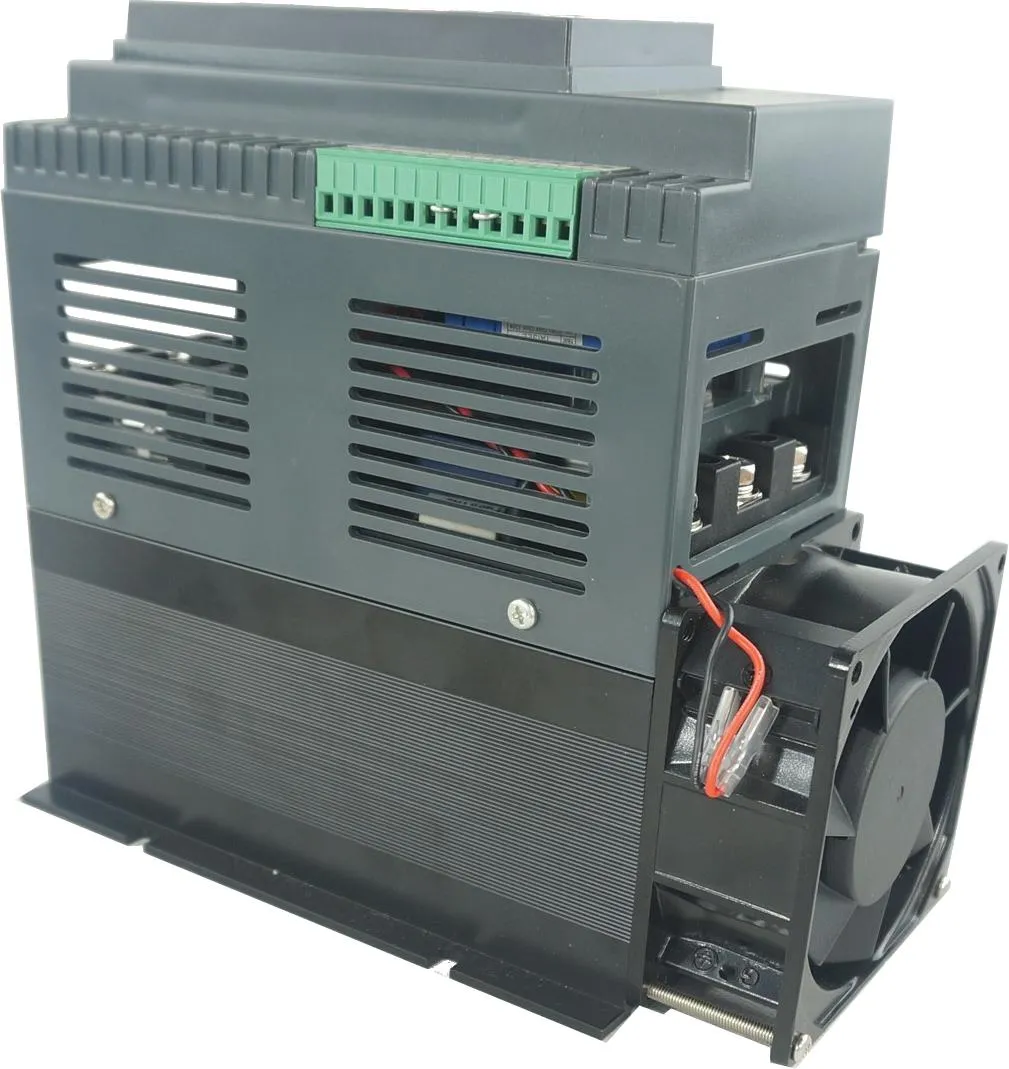

Fastron T6-2-4-75Z (60), 3 Phase, 2 Leg SCR Burst Controller, 400VAC with In built Fuses, 60 Amps per Phase @ 50 Deg C
Features
- Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions
- Made in China, Low cost
- 3 Phase, or Single Phase, Angle/Burst Controller
- 4-20mA/0-10V/1-5V/5K POT input Proportional Control
- RS485 Modbus RTU as standard
- 2 x Analogue Outputs as standard
- Limit POT input for output limitation
- C/O Alarm Contacts
- Start/Stop Run Feature
- Fully enclosed IP20
- Phase Angle or Burst switching
- Aluminium Frame
- Removable Cover
Applications
- Electrical Ovens, Kilns, or Furnaces
- HVAC Heaters
- Controlled Power Applications
- Electric Boilers
- Brewery Heatsing
- Industrial Light Dimming
- Suitable for HVAC or Industrial Environments
Specification
|
Fastron Part Number |
T6-2-4-75Z (60),ST6-2-4-40Z (32),T6-2-4-50Z (40) |
| Rated Operating Temperature | 50°C |
| SCR Configuration | 3 Phase, 2 Leg, AC Switch |
| Control Voltage | 4-20mA/0-10V/0-5V/5K POT |
| Load Current | 40 Amps Per Phase @ 50 Deg C |
| Derating | 2% per 1 Deg C (approx) |
| Control Range | 0-100% |
| Alarms | 1 x C/O Relay Contacts |
| Special Feature | Internal Fuse |
| Analogue Output | 2 x Programmable Outputs (3 Phase), 1 x Programmable Output (Single Phase) |
| Comms | RS485 Modbus RTU |
| Mounting Style | Panel Mount |
| Switching Voltage Range | 400VAC /-10% |
| Supply Voltage | 230VAC /-10% |
| Soft Start/Stop | Programmable |
| Termination Style | Screw |
| Unit Weight | 4kg (6kg Packed) |
| Factory Pack Qty | 1 |
