Product Details
＋

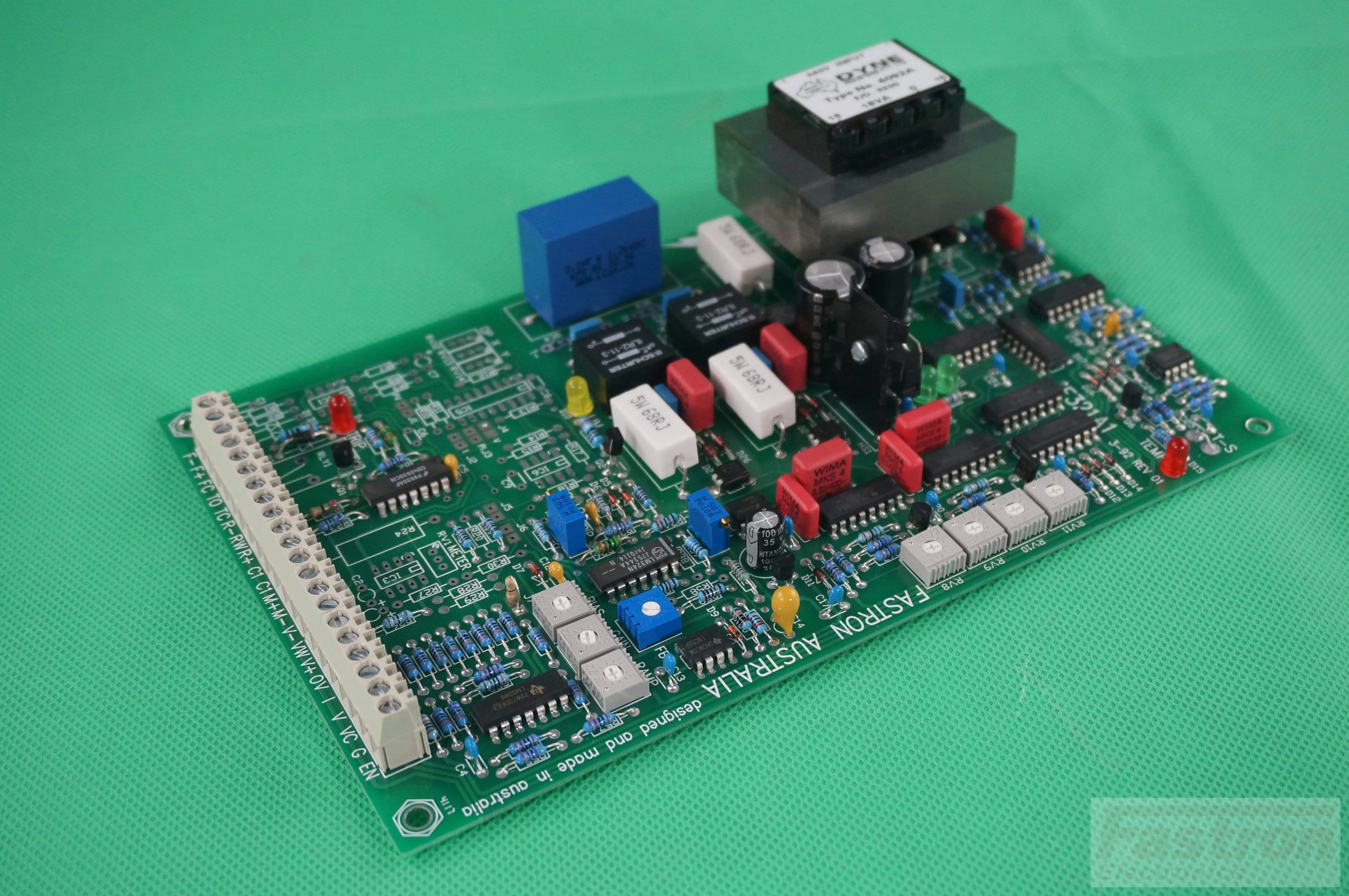

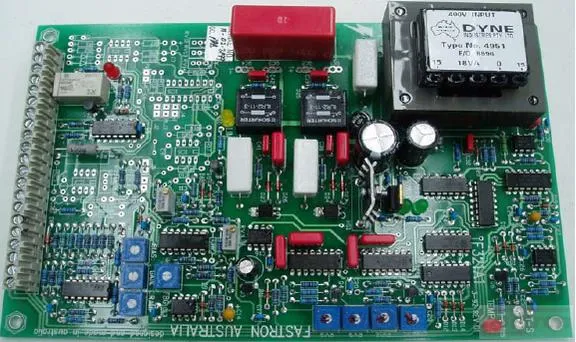

Oztherm F311 Series Single Phase SCR Phase Angle Controller, Card Only
- 100% Australian Made
- Single Phase, Phase Angle Controller or AC Soft Starter
- 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control
- Phase angle switching
- Cards Only
Applications
- Electrical Ovens, Kilns, or Furnaces
- AC Soft Starter
- Primary Control of Transformer Rectifers
- Controlled Power Applications
- Electric Boilers
- Brewery Heating
- Industrial Light Dimming
- Suitable for extreme environments such as mining
- Sheet Metal Welding
Available Options
- Voltage Regulation AC (A)
- Current Limit and Trip AC (C)
- Current Control/Constant Current AC (CC)
- Power Limit (PW)
- Loose Semiconductor Fuses (F)
- Internal Semiconductor Fuses (FI)
- Thermal Overload Protection (T)
Special Features
for customised features
Specification
| Oztherm Part Number | F330 Series 3 Phase, Phase Angle Controller |
| Rated Operationg Temperature | 50°C |
| SCR Configuration | 3 Phase AC Swtich |
| Control Voltage | 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) |
| Load Current | 100 - 150 Amps Per Phase |
| Control Range | 0-100% |
| Special Feature | (Optional) Current Limit & Trip AC, Current Control AC, Voltage Regulation AC, Power Limit, Thermal Overload Protection, Fuses |
| Mounting Style | Panel Mount |
| Supply Voltage Range | 190-265VAC /-10% |
| Soft Start | 1-20mS |
| Termination Style | Screw |
| Unit Weight | up to 28kg |
| Factory Pack Qty | 1 |
Technical Docs
Customised models
- for customised features not listed
