Product Details
＋

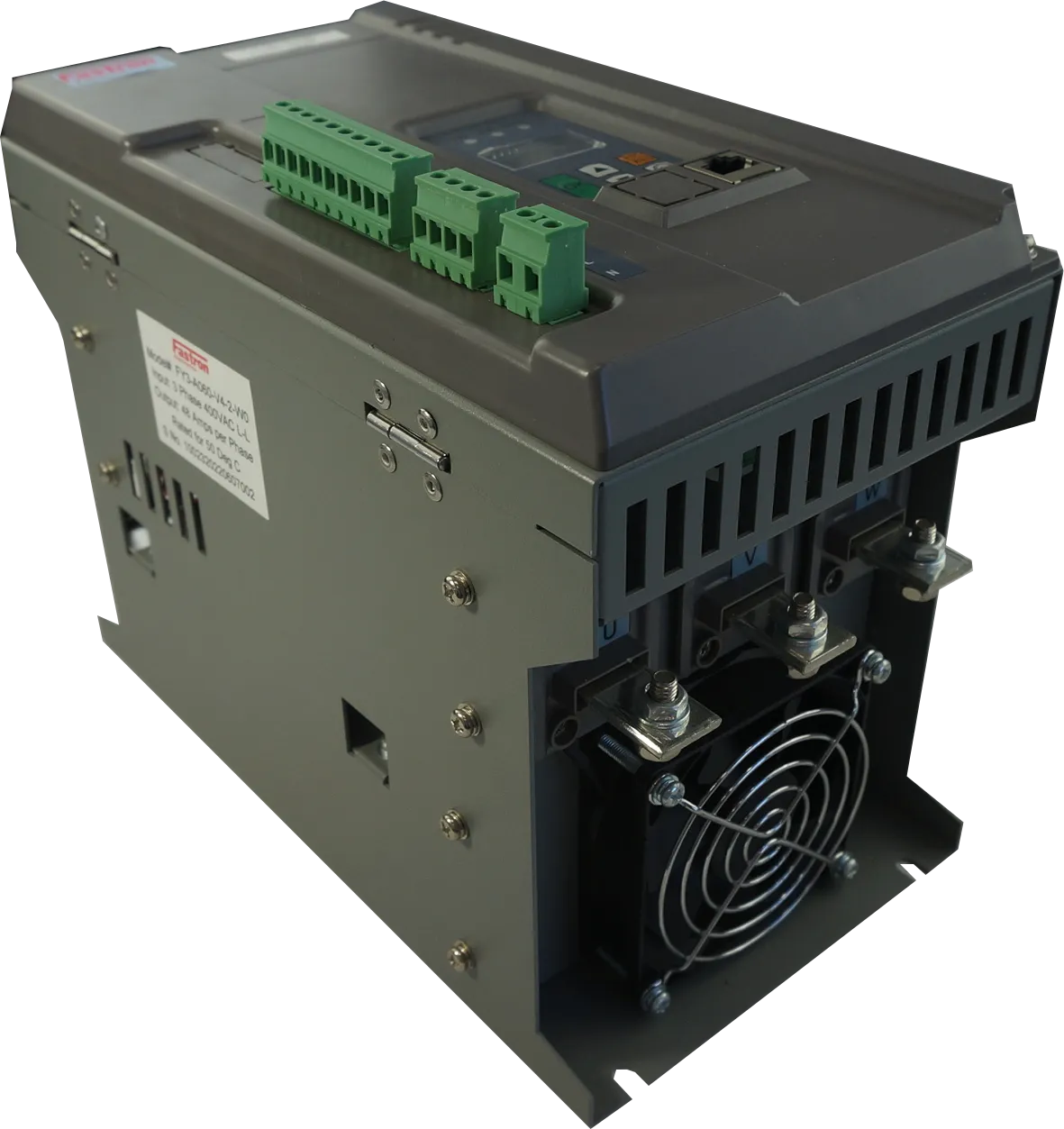

Fastron FY3 Series, Phase/Burst Controller for Primary Control of Transformer (Phase angle mode only), Voltage/Current/Power Limit Modes, For 3 Wire or 4 Wire Loads, 400VAC, 50 Amps per Phase @ 50 Deg C
Features
- Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions
- Made in China, Low cost
- 3 Phase, or Single Phase, Angle/Burst Controller
- 4-20mA/0-10V/1-5V input Proportional Control
- Fully enclosed IP20
- Phase Angle or Burst switching
- Aluminium Frame
- Removable Cover
Applications
- Electrical Ovens, Kilns, or Furnaces
- HVAC Heaters
- Controlled Power Applications
- Electric Boilers
- Brewery Heating
- Industrial Light Dimming
- Suitable for HVAC or Industrial Environments
Specification
|
Fastron Part Number |
FY3 Series |
| Rated Operating Temperature | 50°C |
| SCR Configuration | 3 Phase AC Switch |
| Control Voltage | 4-20mA/0-10V/0-5V |
| Load Current | 50-500 Amps Per Phase @ 50 Deg C |
| Derating | 2% per 1 Deg C (approx) |
| Control Range | 0-100% |
| Alarms | 1 x NO Relay Contacts |
| Special Feature | Internal Fuse, Current Limit, Power Limit |
| Comms | N/A Optional |
| Mounting Style | Panel Mount |
| Switching Voltage Range | 400VAC /-10% |
| Supply Voltage | 230VAC /-10% |
| Soft Start | N/A |
| Termination Style | Screw |
| Unit Weight | 4kg (6kg Packed) |
| Factory Pack Qty | 1 |
