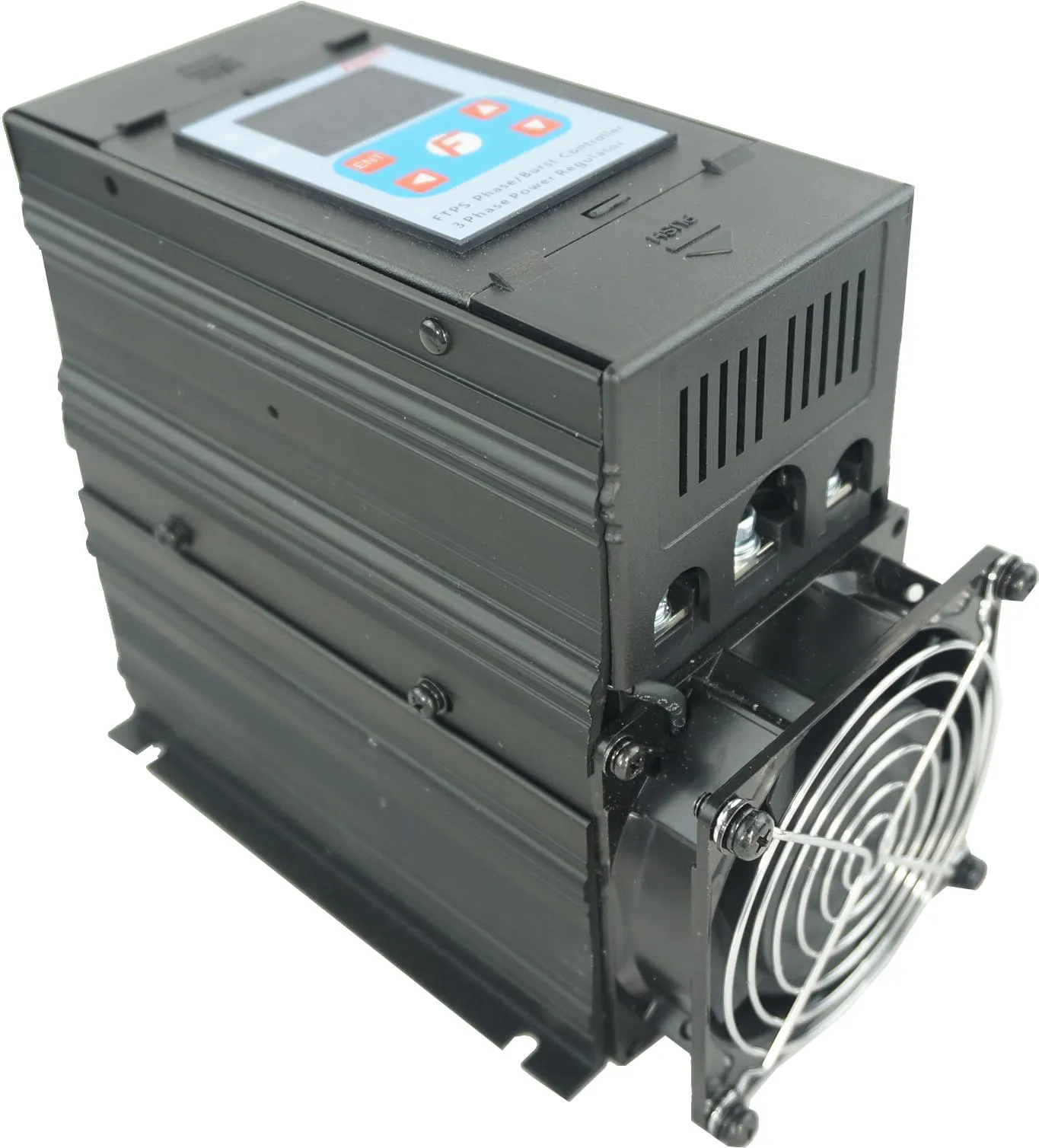

Name: FTPS Series 400VAC 3 Wire (400V L-L, 230V L-N), Low Cost SCR Phase/Burst Controller for HVAC, 3 Phase, with In built Fuses, 32,40,64,80 Amps per Phase @ 50 Deg C
SKU: 558198

Product Details ＋

Fastron FTPS Series 400VAC 3 Wire (400V L-L, 230V L-N), Low Cost SCR Phase/Burst Controller for HVAC, 3 Phase, with In built Fuses, 32,40,64,80 Amps per Phase @ 50 Deg C

Features

Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions
Made in China, Low cost
3 Phase, or Single Phase, Angle/Burst Controller
4-20mA Input Proportional Control (0-10V/1-5V/5K POT input on request)
Fully enclosed IP20
Phase Angle or Burst switching
Aluminium Frame

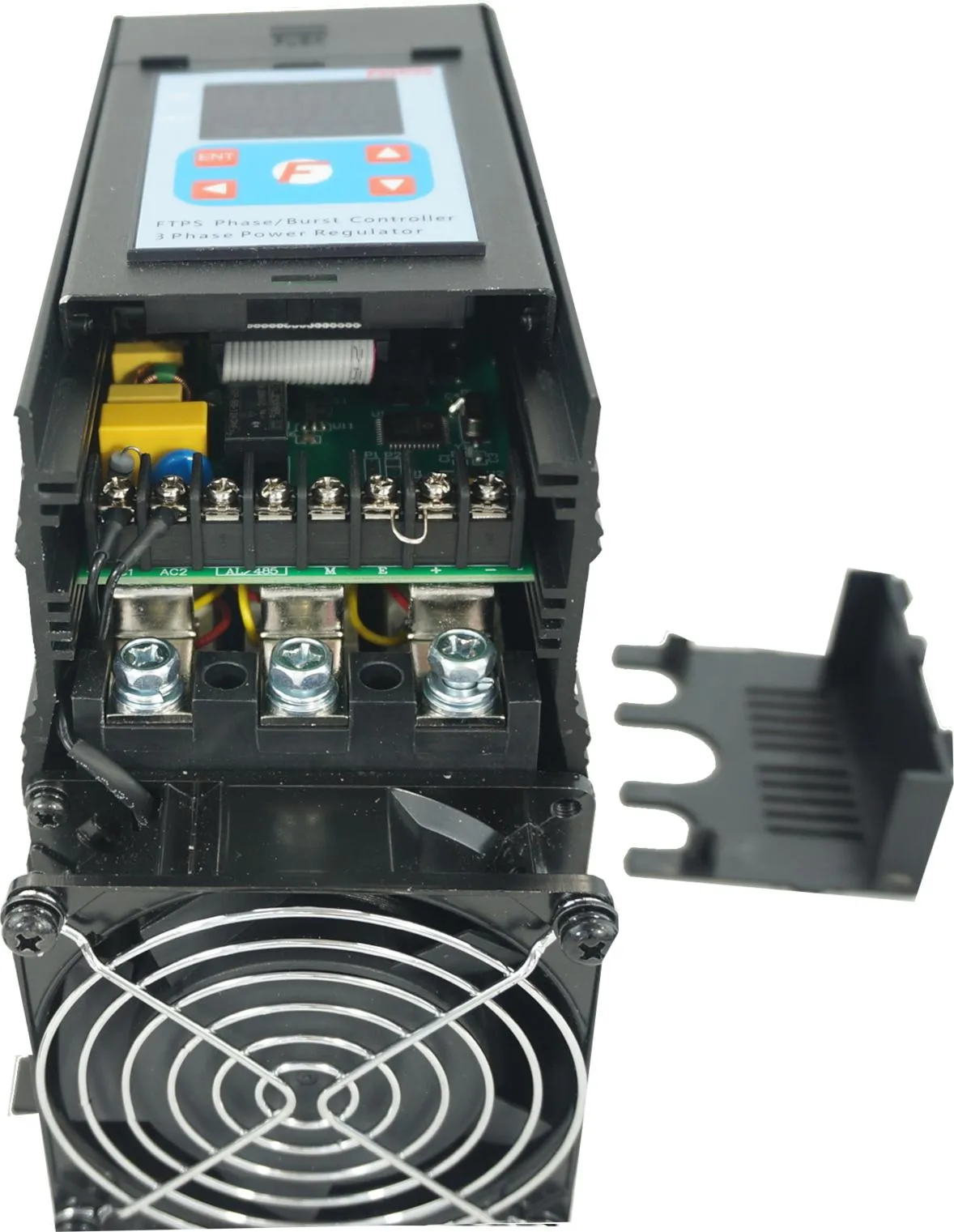

Removable Cover

Applications

Electrical Ovens, Kilns, or Furnaces
HVAC Heaters
Controlled Power Applications
Electric Boilers
Brewery Heatsing
Industrial Light Dimming
Suitable for HVAC or Industrial Environments

Specification

Fastron Part Number	FTPS-3-400-50-420
Rated Operating Temperature	50°C
SCR Configuration	3 Phase AC Switch
Control Voltage	4-20mA default (0-10V/0-5V/5K POT on request)
Load Current	40 Amps Per Phase @ 50 Deg C
Derating	2% per 1 Deg C (approx)
Control Range	0-100%
Alarms	1 x NO Relay Contact (not available with RS485 Option)
Comms	Optional RS485 Modbus RTU
Special Feature	Internal Fuse
Mounting Style	Panel Mount
Switching Voltage Range	400VAC /-10%
Supply Voltage	230VAC /-10%
Delay on Start	Programmable from 0 to 10 seconds
Soft Start	Programmable from 0 to 10 seconds
Termination Style	Screw
Unit Weight	4kg (6kg Packed)
Factory Pack Qty	1
