Product Details
＋

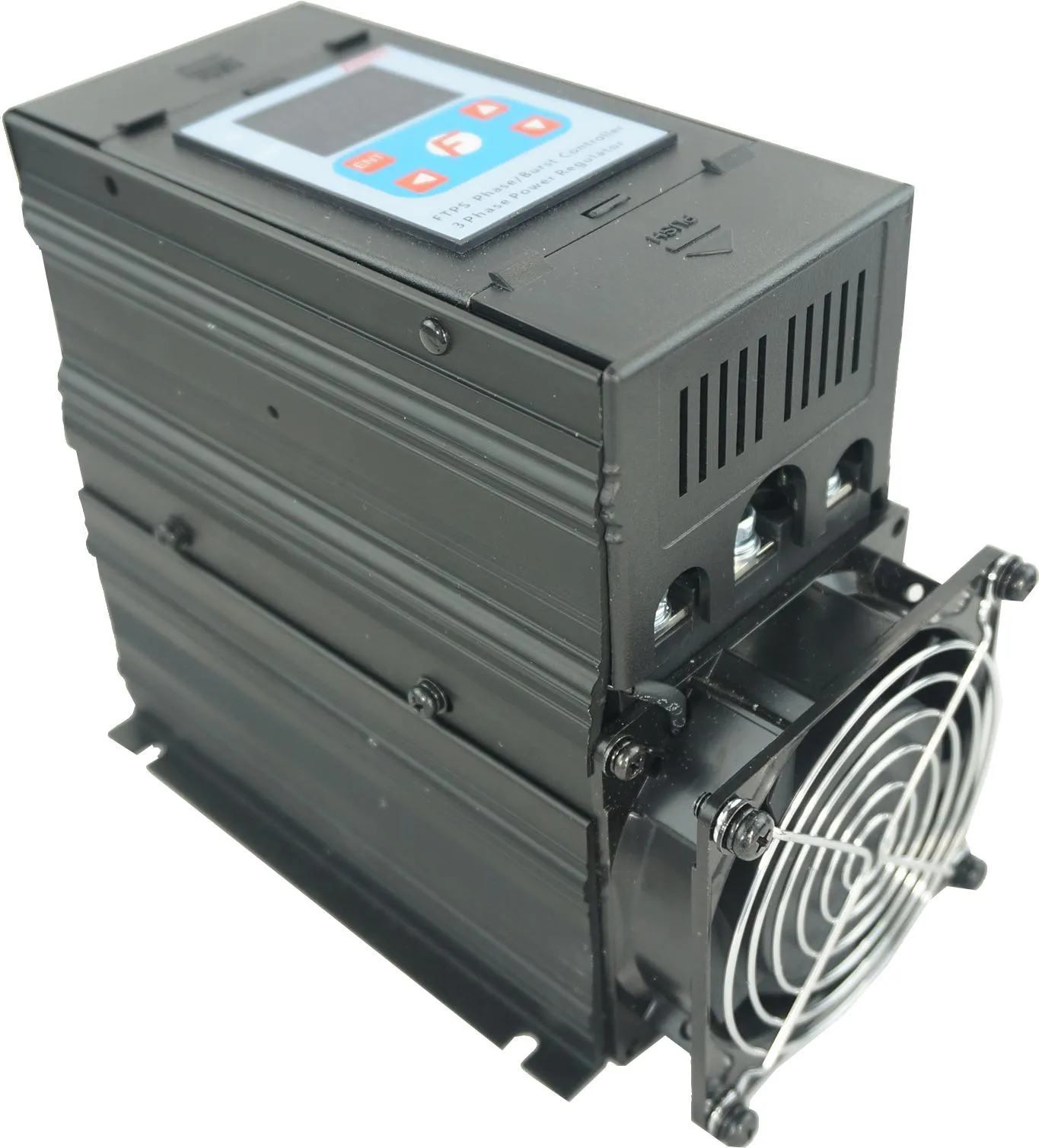

Fastron FTPS Series 230VAC 3 Wire (230V L-L, 110V L-N), Low Cost SCR Phase/Burst Controller for HVAC, 3 Phase, 32,40,64,80 Amp Per Phase with In built Fuses
Features
- Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions
- Made in China, Low cost
- 3 Phase, or Single Phase, Angle/Burst Controller
- 4-20mA Input Proportional Control (0-10V/1-5V/5K POT input on request)
- Fully enclosed IP20
- Phase Angle or Burst switching
- Aluminium Frame

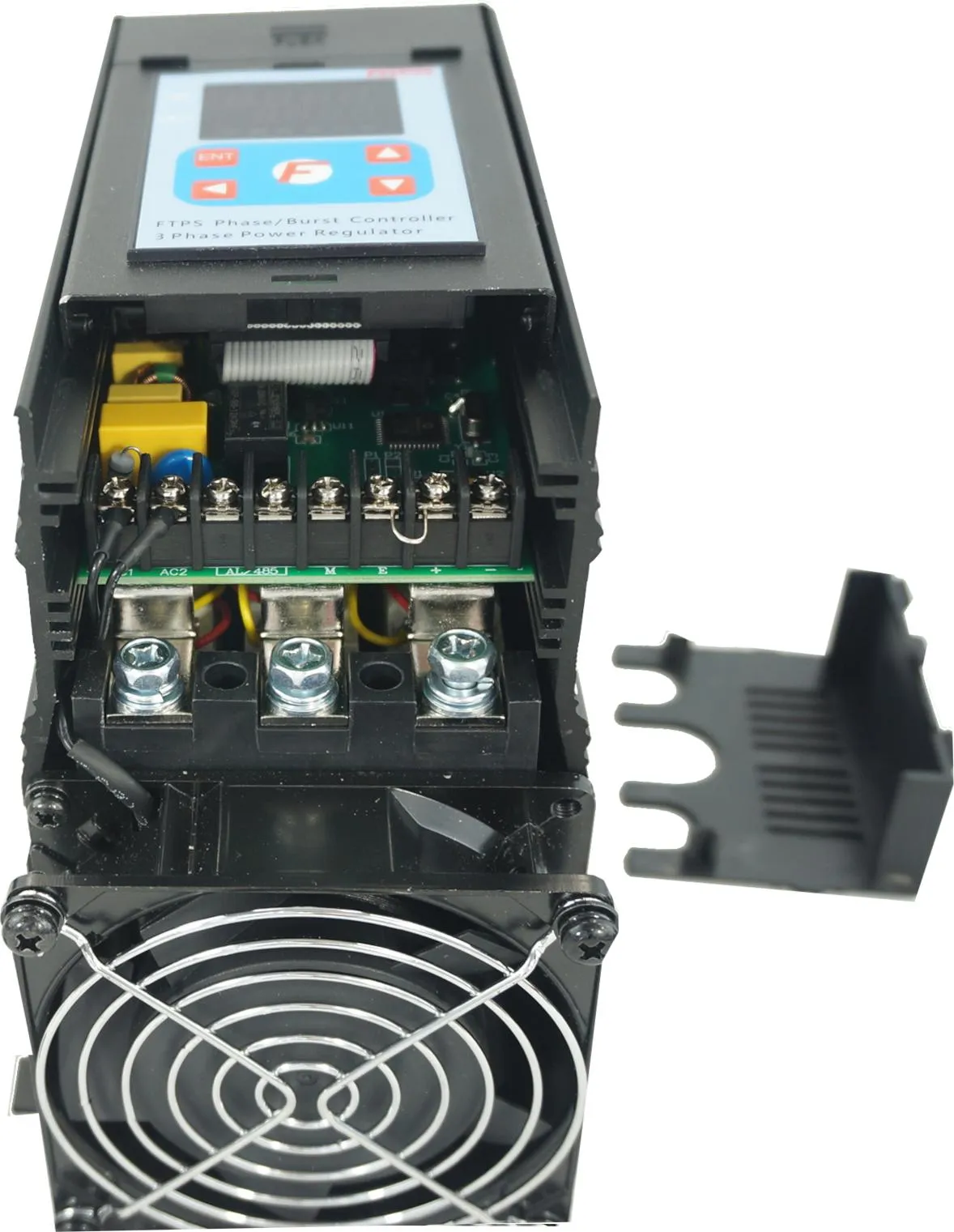

- Removable Cover
Applications
- Electrical Ovens, Kilns, or Furnaces
- HVAC Heaters
- Controlled Power Applications
- Electric Boilers
- Brewery Heatsing
- Industrial Light Dimming
- Suitable for HVAC or Industrial Environments
Specification
|
Fastron Part Number |
FTPS-3-400-50-420 |
| Rated Operating Temperature | 50°C |
| SCR Configuration | 3 Phase AC Switch |
| Control Voltage | 4-20mA default (0-10V/0-5V/5K POT on request) |
| Load Current | 40 Amps Per Phase @ 50 Deg C |
| Derating | 2% per 1 Deg C (approx) |
| Control Range | 0-100% |
| Alarms | 1 x NO Relay Contact (not available with RS485 Option) |
| Comms | Optional RS485 Modbus RTU |
| Special Feature | Internal Fuse |
| Mounting Style | Panel Mount |
| Switching Voltage Range | 230VAC /-10% |
| Supply Voltage | 230VAC /-10% |
| Delay on Start | Programmable from 0 to 10 seconds |
| Soft Start | Programmable from 0 to 10 seconds |
| Termination Style | Screw |
| Unit Weight | 4kg (6kg Packed) |
| Factory Pack Qty | 1 |
