Product Details
＋

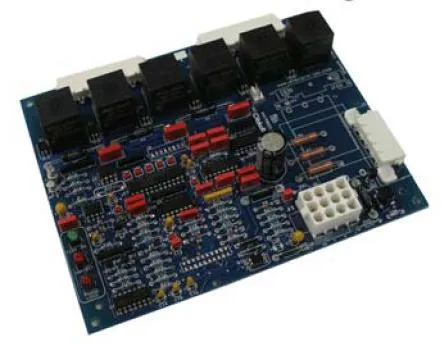

Enerpro FCOG-6100-R Series 3 Phase SCR Phase Angle Controller Card Set
Features
- 100% USA Made
- 3 Phase, Phase Angle Controller, AC or DC Soft Starter or Motor Controller
- 4-20mA, 0-5V, 0-10V, 1-2V, or Custom input Proportional Phase Control
- Phase Angle SCR Switching
- Card Only
Applications
- Drives, Synchronous and Asynchronous
- Reversing Rectifiers (Special Option)
- Exciters
- Siemens Simovert Replacement Cards
- Electrical Ovens, Kilns, or Furnaces
- AC Soft Starter
- Controlled Power Applications
- Electric Boilers
- Brewery Heating
- Industrial Light Dimming
- Suitable for extreme environments such as mining
- Sheet Metal Welding
Available Configurations
AC Converter
- 6 SCR
- Parallel SCR
DC Converters
- Two Quadrant, Parallel SCR
- Two Quadrant, 6 SCR
Special Features
for customised features
See below for Optional card sets
Specification
| Enerpro Part Number | FCOG-6100-R |
| Rated Operationg Temperature | 50°C |
| Response | < 20mS |
| SCR Configuration | 3 Phase AC Swtich |
| Control Voltage | 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) |
| Load Current | Depends on SCR stack |
| Control Range | 0-100% |
| Special Feature | See Optional Card Sets below |
| Mounting Style | Panel Mount |
| Supply Voltage Range | 380-440VAC /-10% |
| Soft Start | Customisable |
| Termination Style | Connector |
| Unit Weight | 2-3kg |
| Factory Pack Qty | 1 |
Technical Docs
Optional Cards
- for customised features not listed
