Product Details
＋

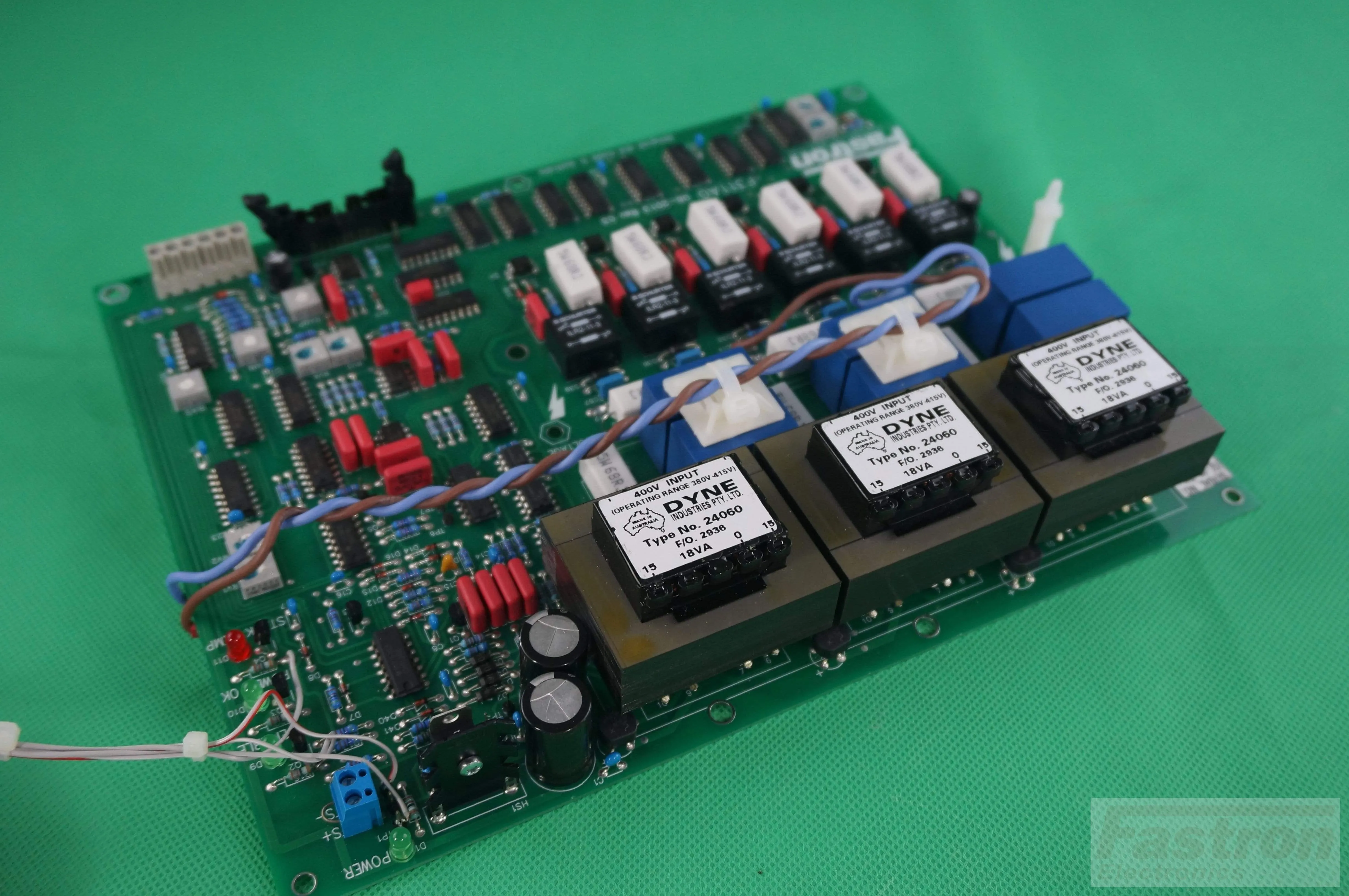

Oztherm F431 Series 3 Phase SCR Burst Controller Spare Card Set
- 100% Australian Made
- 3 Phase Burst Controller
- 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control
- Fully enclosed IP20
- Burst Fired switching
- Aluminium Frame
- Removable perspex Cover
Applications
- Electrical Ovens, Kilns, or Furnaces
- Secondary or Direct Control only
- Controlled Power Applications
- Electric Boilers
- Smelting of Raw Metals
- Suitable for extreme environments such as mining
- Room/Chamber heating
Available Options
- Current Limit and Trip AC (C)
- Power Limit (PW)
- Phase Loss Output (PH)
- Partial Load Failure (PLF)
- Loose Semiconductor Fuses (F)
- Internal Semiconductor Fuses (FI)
- Thermal Overlad Protection (T)
Special Features
for customised features
Specification
| Oztherm Part Number | F431 Series 3 Phase Burst Controller (Cards Only) |
| Rated Operationg Temperature | 50°C |
| SCR Configuration | 3 Phase AC Swtich |
| Control Voltage | 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) |
| Load Current | 30 - 120Amps Per Phase |
| Control Range | 0-100% |
| Special Feature | (Optional) Current Limit & Trip AC, Power Limit, Phase Loss Alarm, Partial Load Failure Alarm, Thermal Overload Protection, Fuses |
| Mounting Style | Panel Mount |
| Supply Voltage Range | 380-440VAC /-10% |
| Soft Start | 1-20mS |
| Termination Style | Screw |
| Unit Weight | up to 3kg |
| Factory Pack Qty | 1 |
