Product Details
＋

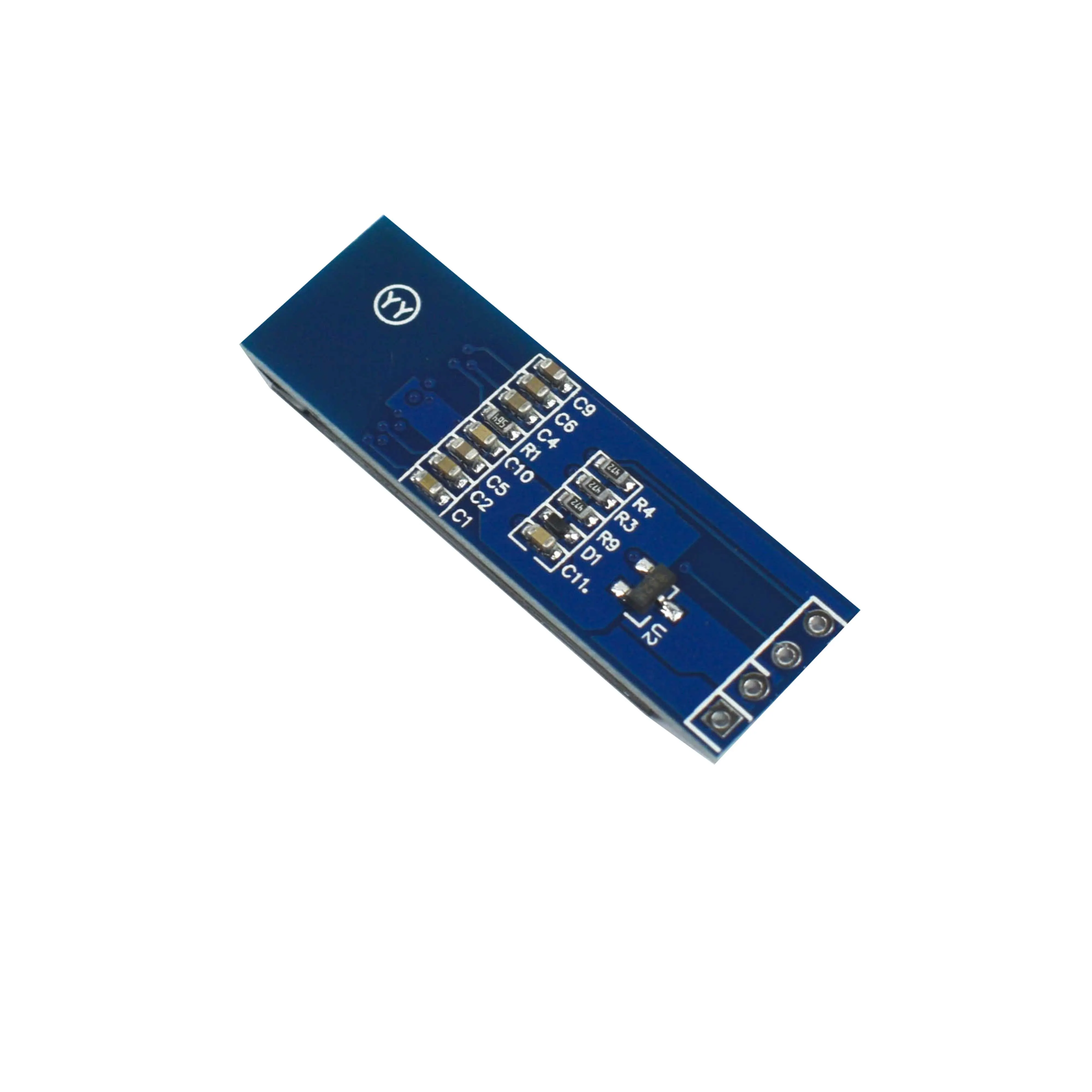

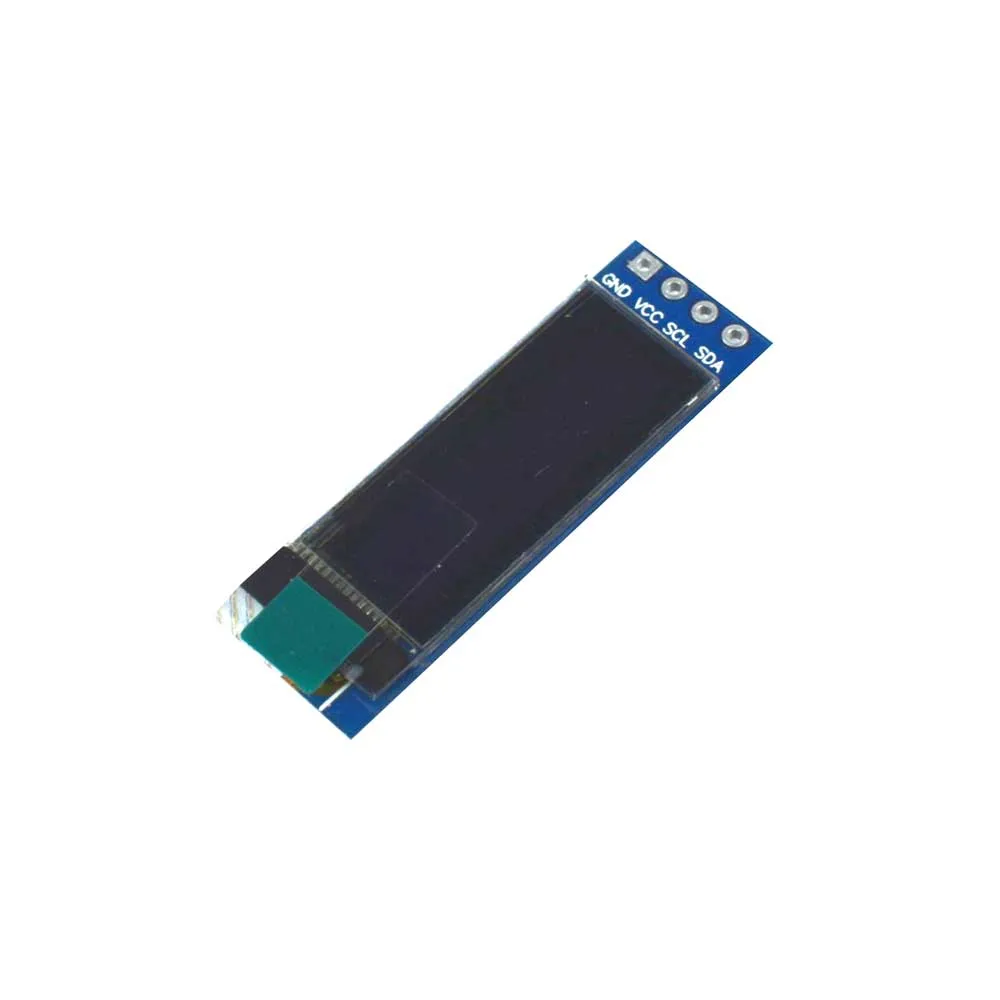

This 0.91" monochrome OLED is basically a 128x32 dot matrix display module with an I2C interface. It's ideal for applications that require a very small display. When compared to LCD panels, OLED displays offer a variety of benefits, including high brightness, self-emission, high contrast ratio, slim outline, broad viewing angle, wide temperature range, and low power usage.
Specifications
| Resolution | 128 x 32 |
| Visual Angle | >160° |
| Input Voltage | 3.3V ~ 6V |
| Size (Min) | 22.384x5.584(mm) |
| Pixel Color | Blue |
| OLED Driver IC | SSD1306 |
| Interface | 6800, 8080, serial, and I2C |
| Country of Origin | China |
